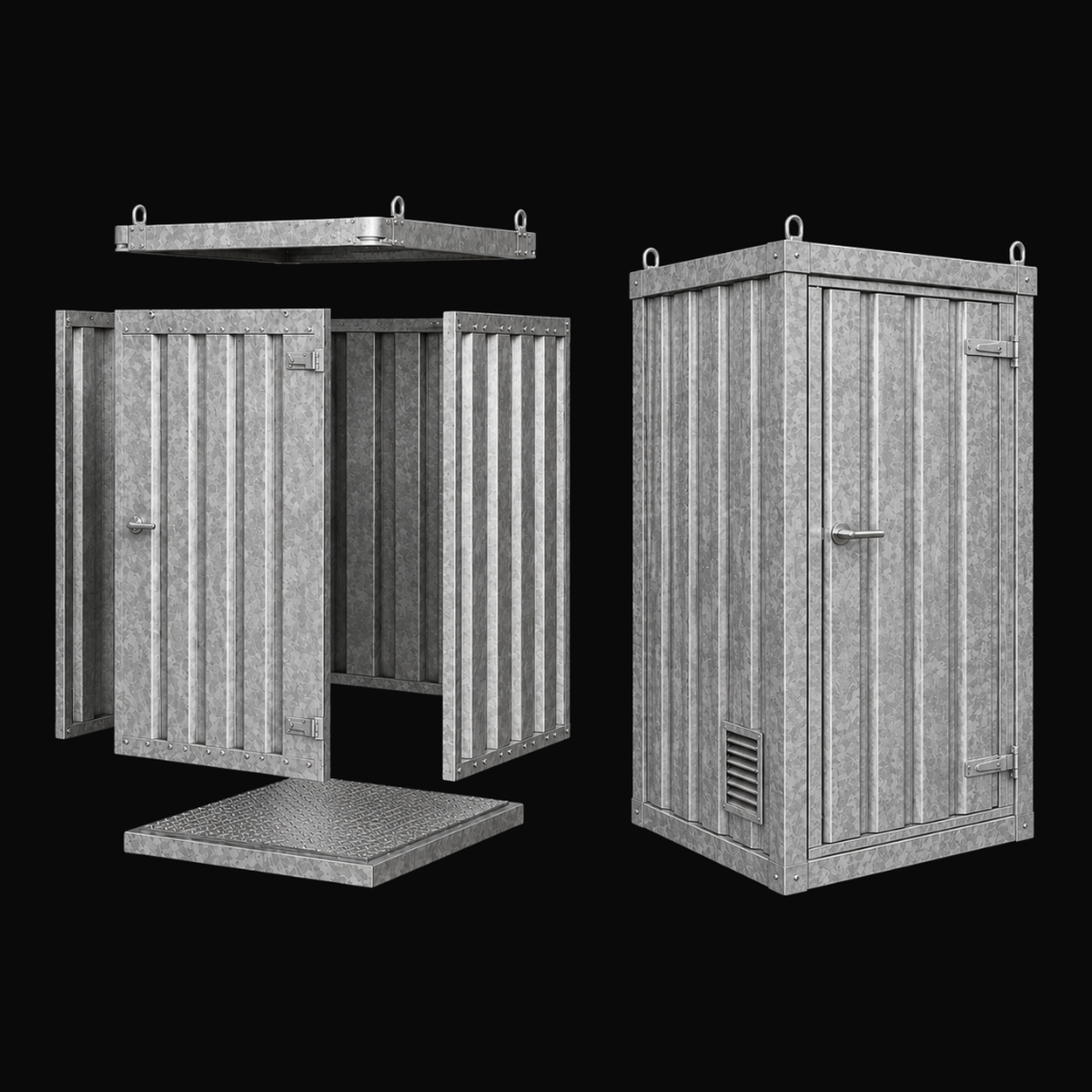

A modular flatpack enclosure designed for internal WTG deployment, new-build, design-locked and legacy assets. Ships flat, assembles on site in ~2 hours by two people with hand tools.
The modular format unlocks deployment at remote assets where access constraints prevent fully assembled units. Galvanised U & C channel chassis, checker plate floor mechanically fixed to the supporting structure, galvanised steel wall and roof panels, galvanised steel door.
No insulation (it's an internal-deployment unit). Internal deployment also means wind and snow loading considerations are not applicable.

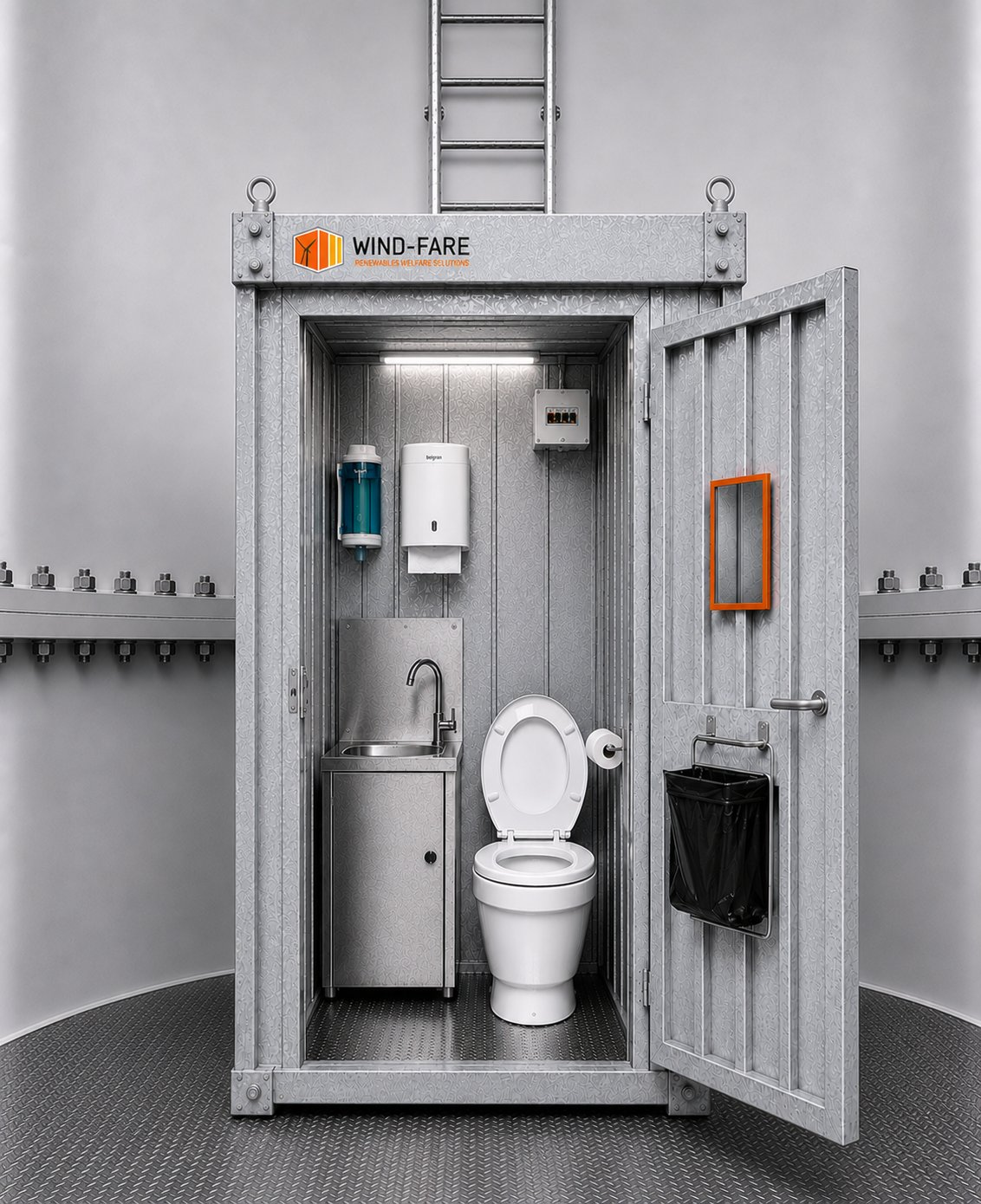

When supplied with Wind-Fare modular internals, the FlatPack carries the same compliant fit-out as every other THUNDERBOX™ — dry-flush toilet, hot/cold sink, SNOAP soap, LED+PIR lighting, passive ventilation, mirror, paper towel dispenser.
Alternatively the FlatPack can be supplied as an enclosure-only solution for clients who want to specify and install their own internal components.
| External Dimensions | 2190mm (H) × 1137mm (W) × 1376mm (D) |
|---|---|
| Total Weight | 150kg (heaviest individual panel 35kg) |
| Chassis | Galvanised U & C channel steel sections |
| Walls & Roof | Galvanised steel skins without insulation — optimised for internal deployment |
| Floor | Checker plate, mechanically fixed to supporting structure |
| Door | Galvanised steel panel in steel frame |
| Finish | Galvanised throughout, no additional coatings applied. Internal faces designed for durability and ease of cleaning |
| Assembly | 2-person manual assembly · ~2 hours · standard hand tools |
| Lifting | Not designed to be lifted as a complete unit. Bespoke lifting bags available for component transfer from support vessels to deployment location |
| Power | External IP-rated input. Accepts generator, fixed grid (WTG / FOU) or battery sources |
| Ventilation | Passive — high and low diagonal vents on opposing sides |
| Loading | Designed for internal deployment - NA |
| Supply Options | Enclosure-only (client specifies internals) or fully fitted with Wind-Fare modular internals |
