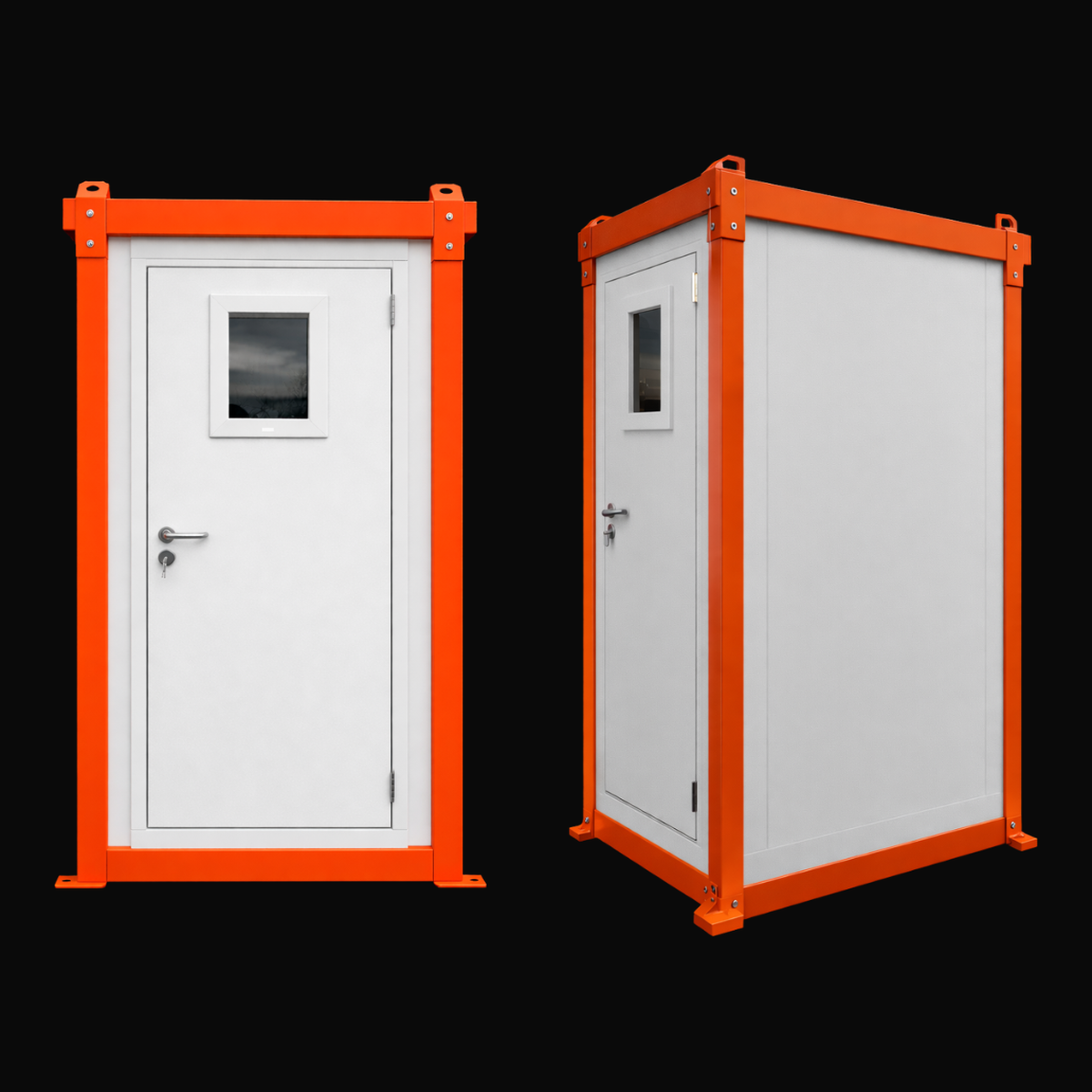

A pre-assembled modular unit with a discreet footprint. Designed for onshore deployment across wind, BESS and solar projects. Galvanised chassis with protective paint coating; insulated walls and roof; single-lift configuration with four LOLER-rated lifting points.

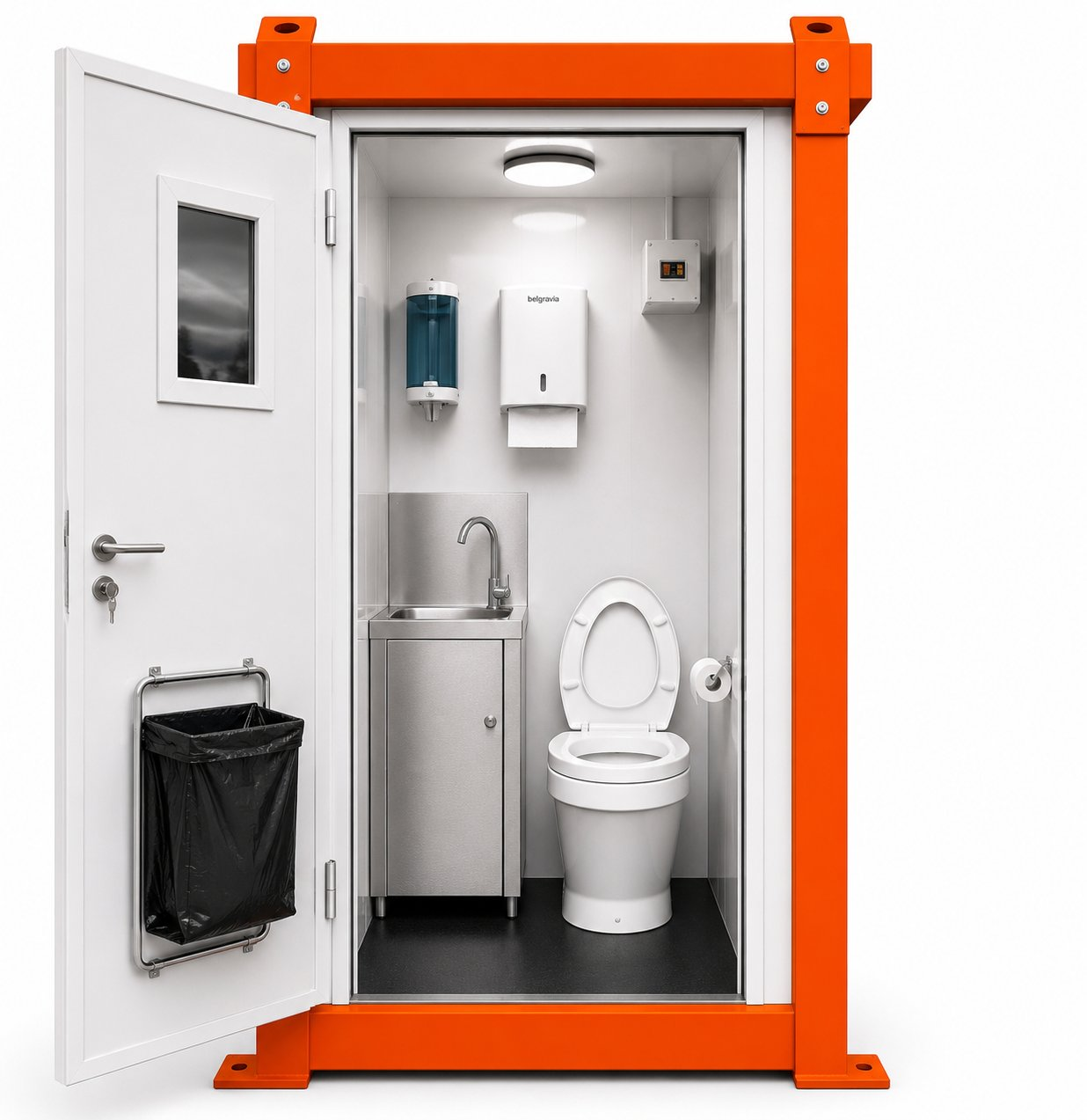

Plumbing-free dry-flush toilet, plug-and-play hot/cold sink, fresh and waste water tanks, paper towel dispenser, mirror, external PPE hooks. SNOAP solid soap as standard.
Natural daylight via a privacy-screened double-glazed window in the door. LED lighting with PIR. Passive ventilation with cowled external vents.
| External Dimensions | 2155mm (H) × 1105mm (W) × 1376mm (D) |
|---|---|
| Weight | 250kg |
| Chassis | Galvanised U & C channel steel sections with protective paint coating for marine durability |
| Walls & Roof | Insulated composite panels — galvanised steel inner and outer skins with polyurethane core |
| Floor | Pre-fitted checker plate, mechanically fixed to supporting structure |
| Door | Insulated galvanised steel panel in steel frame, with privacy-screened double-glazed window |
| Lifting | 4 × reinforced lifting points at roof corners. LOLER / Schedule 4 compliant with SWL identification |
| Forklift Handling | Optional forklift pockets — increases overall height and weight, consider in logistics planning |
| Power | External IP-rated input. Accepts generator, fixed grid (WTG / FOU) or battery sources |
| Lighting | Internal LED with PIR control. Natural daylight via privacy-screened double-glazed door window |
| Ventilation | Passive — high and low diagonal vents on opposing sides. External cowls reduce water ingress |
